Name: GE IC660BBD021 24/48 de VDC afunda as séries 90-30 PLCs do circuito do I/O 16 3 sensores contínuos do fio
Brand: Wisdomlong Technology CO.，LTD
SKU: IC660BBD021
Price: 1.00 USD
Availability: InStock

Casa Produtos Digitas mim módulo de O

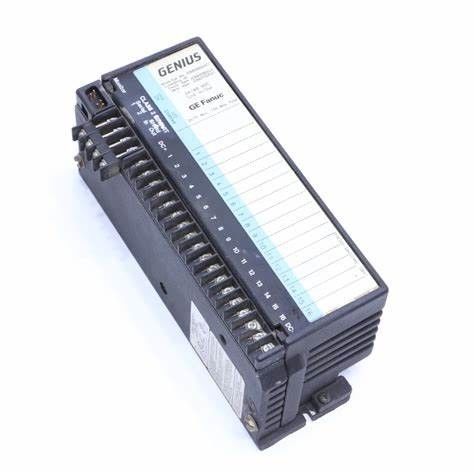

GE IC660BBD021 24/48 de VDC afunda as séries 90-30 PLCs do circuito do I/O 16 3 sensores contínuos do fio

Detalhes do produto:

Lugar de origem:	EUA
Marca:	GE
Número do modelo:	IC660BBD021

Condições de Pagamento e Envio:

Preço:	Negociável
Detalhes da embalagem:	Novo na automatização original do boxRockwell
Tempo de entrega:	5-8 automatização do daysRockwell do trabalho
Termos de pagamento:	T/T
Habilidade da fonte:	1

Contato

Descrição de produto detalhada

Circunstância:	novo	Tensão nominal da saída:	240 VAC
Tipo de produto:	MÓDULO ENTRADO	Garantia:	1 ano
Exigência de memória:	12/24 de volt de C.C.	Tensão avaliado:	11 watts
Escala da tensão da saída:	4 e 20 miliampères	Taxa de uma comunicação:	12 entradas positivas da fonte

GE IC660BBD021 24/48 VDC Sink I/O 16 Circuit series 90-30 PLCs 3-wire solid sensors

Product information GE IC697MDL653 :

The IC660BBD021 has many configurable parameters, including output pulse test, configurable input filter time, output power up defaults, and output hold last state or default. The block is equipped with electronic short circuit and over temperature protection. It can detect a failed switch, open wire in tristate inputs, overload, or no load. Also, protective mechanisms prevent any damage due to overload by shutting down the system.

The block should be installed in a protective case in a place with no airborne contaminants and with adequate cooling and air flow. IC660BBD021 needs a grounding system. The 16 circuits of the block use terminals 6 to 21. Those terminals can work as inputs or outputs. Outputs connect to DC- and inputs to DC+ with no need of logic inversion. Using a terminal as a tristate input requires one resistor mounted at the dry contacts of the input device. This ensures open wire diagnostic availability.

When a user decides to disconnect block power, circuit power must be disconnected as well. If power is applied to field terminals, touching the pins is very dangerous and can cause electrical shock. To replace an electronics assembly, a handheld monitor should first be connected. The user must monitor the circuits from the HMM menu and then turn it off and disconnect. The user can now power down the block, remove the electronics assembly, and install the new one. Terminals can be used as inputs or outputs using the + or – side of the terminal board.

Rated Voltage:	24/48 VDC
# of Points:	16
Input Range:	18-56 VDC
Load Current:	2 Amp
Operating Voltage:	18-56 VDC
Points per Common:	One group of 16

Another module:

IC694MDL230	120 VAC Isolated Input (8 Points)
IC694MDL231	240 VAC Isolated Input (8 Points)
IC694MDL240	120 VAC Input (16 Points)
IC694MDL241	24 VAC/VDC Input (16 Points)
IC694MDL250	120 VAC Isolated Input (16 Points)
IC694MDL260	120 VAC Input (32 Points)**
IC694MDL632	125 VDC Input (8 Points)
IC694MDL634	24 VDC Input, Neg/Pos Logic (8 Points)
IC694MDL645	24 VDC Input, Neg/Pos Logic (16 Points)
IC694MDL646	24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points)
IC694MDL654	5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points)
IC694MDL655	24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points)
IC694MDL660	24 VDC Input (32 Points)**
IC694ACC300	Input Simulator Module (8 Points)

HC-UFS13	HC-UFS23	HC-UFS73	HC-UFS43
HC-UFS72	HC-UFS152	HC-UFS202	HC-UFS352
HC-UFS502	HC-SFS81	HF-KP13	HF-SP102B
HC-SFS121	HC-RFS153	HF-MP13B	HF-SP152B
HC-SFS201	HC-RFS203	HF-MP23B	HF-SP202B
HC-SFS301	HC-RFS353	HF-MP43B	HF-SP352B
HC-SFS52	HC-RFS503	HF-MP73B	HF-SP502B
HC-SFS102	HA-LFS11K2	HF-KP13B	HF-SP51
HC-SFS152	HA-LFS15K2	HF-KP23B	HF-SP702B
HC-SFS202	HA-LFS22K2	HF-KP43B	HF-SP81
HC-SFS352	HA-LFS11K2B	HF-KP73B	HF-SP121
HC-SFS502	HA-LFS15K2B	HF-SP52	HF-SP201
HC-SFS702	HA-LFS22K2B	HF-SP102	HF-SP51B
HC-SFS53	HF-MP053	HF-SP152	HF-SP81B
HC-SFS103	HF-MP13	HF-SP202	HF-SP121B
HC-SFS153	HF-MP23	HF-SP352	HF-SP201B
HC-SFS203	HF-MP43	HF-SP502	HC-SFS202K
HC-SFS353	HF-MP73	HF-SP702	HC-SFS201B
HC-RFS103	HF-KP053	HF-SP52B	HC-SFS202B
